Holographic Transparent LED Display
Holographic transparent LED display is a new type of transparent LED display. With IC built-in LED lamp and exquisite design, it enables the maximum transparency rate to reach over 80%. Which gives an unbeatable holographic visual effect.
High brightness of over 4000nits, which makes it perfect for shop window or semi-outdoor applications, as it can still be readable under direct sunlight exposure.
Pixel pitch offering has P2.8mm, P3.91mm , P6.25mm and 10.4mm, Easy to splicing into 2K/4K/8K LED display
- Get Quote->
1: Unbeatable Visual effect
Super high transparency rate with full black finish surface gives it a holographic visual effect. Which is an eye catcher, when you display commercials on it.
2: Super high transparency rate

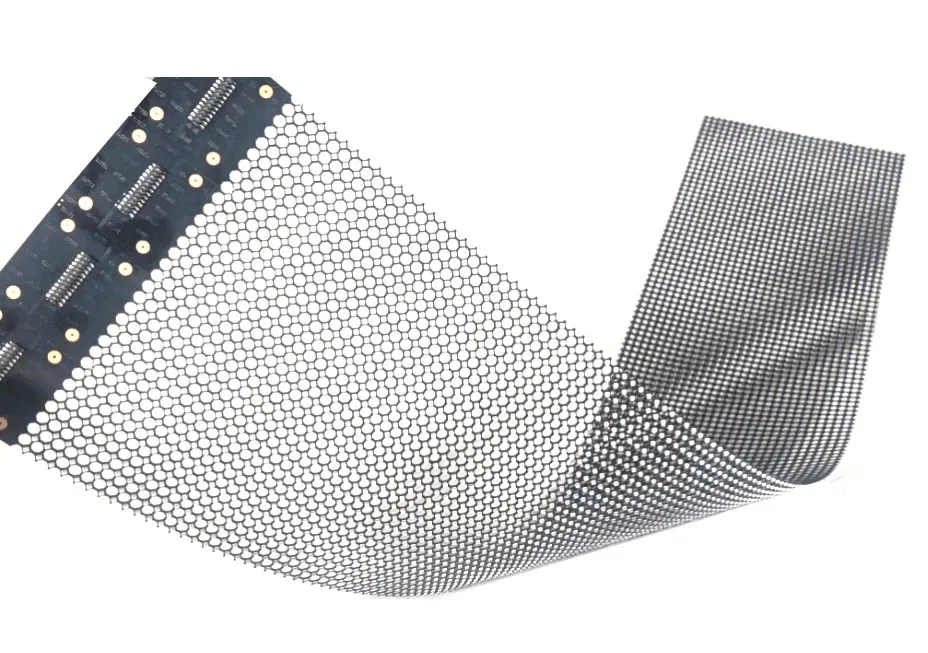

Exquisite PCB layout design with the IC built-in LED lamp, which enables over 80% transparency rate, far beyond the transparency rate of the traditional transparent LED display.
3:Unlimited Width splicing with up to 5m in Height

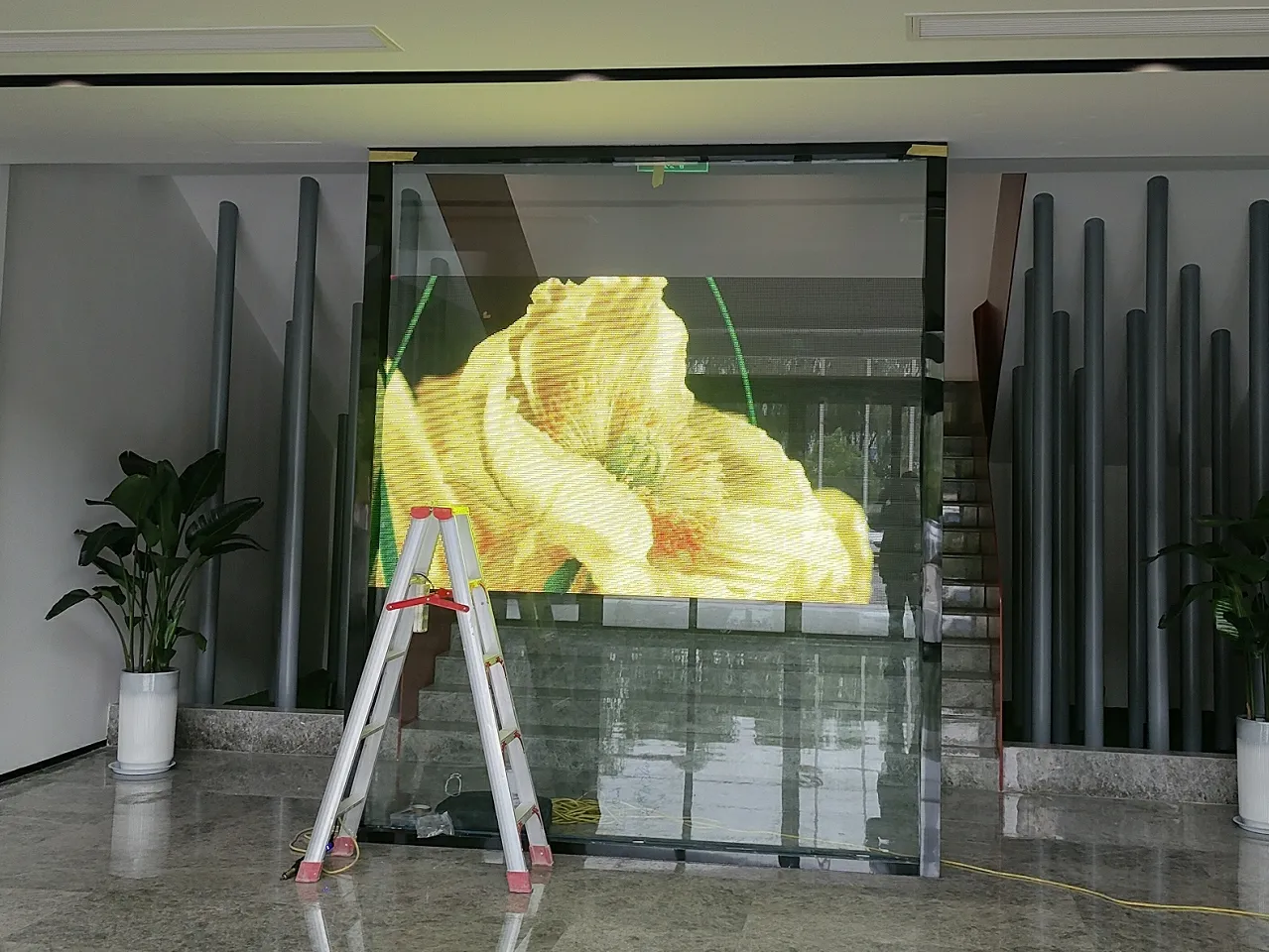

It can make any width you want, and make a Max 5m in height to splice a big one-piece Holographic display without seams. The screen in the video is 4m W x 4m H
4:Easy Installation and Front Maintenance
Self-adhesive film LED Panel, which can be easily attached to the surface of windows. Very easy installation, with full front service, hence it can also be very easy to repair.
5:Customizable Screen size
The LED panel is customizable to make different Sizes, The standard panel size are 250*1000mm, 250*1500mm, 250*2500mm. But we can easily cut the panel to different sizes to meet your ideal screen size.
6:Super Thin and Lightweight
The Holographic Transparent led display only weighs 3kg/sqm, and only 2mm in thickness which means that it does not need an extra supporting structure to withstand the weight.
Holographic LED Display Specifications
| Model | P-2.8 | P-3.91 | P-6.25 | P-10.4 |
| LED Model: | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| IC | Within the lamp | Within the lamp | Within the lamp | Within the lamp |
| Pixel Density | 122500pixels/sqm | 65536pixels/sqm | 25600pixels/sqm | 9216pixels/sqm |
| Pixel Pitch: | 2.8mm | 3.91mm | 6.25mm | 10.4mm |
| Brightness: | 3500nits | 4000 Nits after calibration | 4500 Nits | 3500 Nits |
| View distance: | 3.5meters | 4 meters | 7 meters | 10 meters |
| Module size: | 250mm x 1000mm (customizable) | |||
| Cabinet size | 1000mm x 1000mm (customizable) | |||
| Cabinet resolution: | 352*352 | 256*256 | 160*160 | 96*96 |
| Transparency Rate: | >80% | >80% | >85% | >90% |
| Weight:(kg/sqm) | 3kg/sqm | |||
| Max Power consumption | 600W/sqm | |||
| Avg Power consumption | 200W/sqm | |||
| Scan Rate | Static | Static | Static | Static |
| Receiving card | Novastar/Colorlight | |||
| IP Rate | IP20 | IP20 | IP20 | IP20 |
| Refresh Rate: | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| View angle: | 140° H; 140° V | |||
| Input power | 100-240VAC 50-60Hz | |||
Product Spec Sheet
Holographic Transparent LED Display Spec sheet
Click to download Specs sheet of Holographic Transparent LED Display
FAQ of Holographic Transparent LED Display
Holographic invisible LED display is a new type of transparent LED display; it is an updated design of the self-adhesive film transparent LED display. Unlike the self-adhesive film transparent LED display that the circuit is enclosed within a thin film, especially the LED lamp, which makes it hard to repair and also hard to produce. Holographic transparent LED display uses a mesh-like plastic structure to hold the LED lamp and the circuit. Hence it has similar transparency rate as the flim transaprent led display, but it is more easy to produce, and more stable and durable. The black finish holographic plastic structure also add the contrast ratio which also upgrade the visual effect.
The Holographic transparent LED display works like the traditional LED display, while due to its unbeatable transparency rate, we do suggest customers to customize the video content so that it can have the best visual effects.
The Holographic LED display is customizable, and also cutable, hence if your project is less than 4m in height, the lead time would be around 20days, while if you have other requirements, the time would be longer. You can check more details with us.
Our product has CE-LVD, CE-EMC, and CE-Rohs, FCC, PSE. We use top electrical components suppliers, hence it is also easy to make other certificates as your country request.
For most of our products, We offer a standard 2-year warranty with unlimited online after service.
