Display LED da pavimento

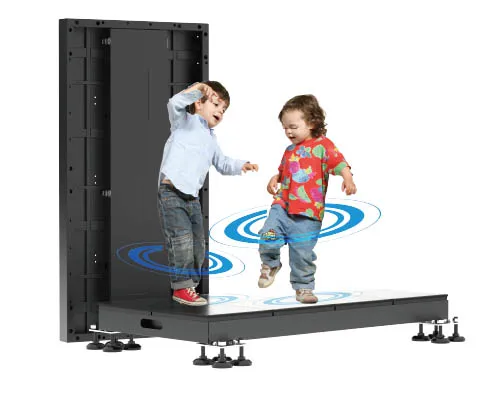

Floor LED Display has a robust structure and design so that it can withstand people’s dancing, jumping, and running. Built-in interactive IC, so we can interact with the screen’s content. like playing games, making special advertisements, creating guide routine, and various applications.
High IP rating, Indoor version has IP54, and outdoor version has IP67. With mask and LOB version to meet different applications. Easy to clean just like normal floor cleanning.
Pixel pitch offering has P1.25, P1.524, P1.83, P1.95, P2.5, P2.6, P2.97, P3.91.
- Richiedi un preventivo->
1:Interactive Floor LED Display
Built-in interactive IC with response feedback of 0.016s. Able to make the interactive process more smooth and without delay.
2:Unlimited interacts points
The floor LED display has 128 sensors per sqm on the led display. And it can be triggered by unlimited points. hence unlimited people can use the floor led display at the same time
3:Outdoor Version available
IP67 rated front and back, with special designed cable connector, able to operate underwater. Signal and PSU integrated design to deliver smooth and stable performance even under tough conditions.
4:Multiple application installation
Our Floor led display can also be installed on the wall to be used as a backdrop. And the interactive content can also be mapped from the ground to the wall. Make unlimited creative applications.
5:High Quality and Waterproof
We have indoor and outdoor Floor led display, Outdoor floor led display is fully IP67 rated, While indoor floor led display is IP54 rated. Both version are able to clean using wet mop. And we would do the related waterproof test
6:Heavy Duty Usage, Weight bearing
Our Mask version floor led display has a bearing capacity of 2t/sqm, which means that for 1 sqm, it can withstand more than 10 adults standing together. Our LOB version Floor led display has a bearing capacity of 1t/sqm. This bearing ability enable people to jump, dance, run, play basketball, play games and other activities. High heel shoes can also walk on the led display without damage
7:Wide applications - Stair LED Display
Our floor led dsiplay has small cabinet with size only 1000mm L x 300mm W. which can be installed the stairs. Make the Stair to be a stair-led display.
Specifiche del modulo schermo LED flessibile
| Model No. | LO1.25 | LO1.5 | LO1.95 | LO2.6 | LO2.97 | LO3.91 |
| Pixel Pitch (mm) | 1.25mm | 1.524mm | 1.95mm | 2.6mm | 2.97mm | 3.91mm |
| Led Lamp | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1921 |
| Pixel Density (dot/ m²) | 640000 | 430336 | 262144 | 147456 | 112896 | 65536 |
| Cabinet Resolution | 400*400 | 328*328 | 256*256 | 192*192 | 168*168 | 128*128 |
| Weight (Kg/ Cabinet) | 12kg | 12kg | 12kg | 12kg | 12kg | 12kg |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
| Brightness (cd/ m²) | 800-1200nit | |||||
| Life span | ≥ 100,000Hours | |||||
| Greyscale | 14bit | |||||
| MAX Wattage (W/ m²) | 800W | |||||
| Working Wattage (W/ m²) | 300W | |||||
| IP Grade | IP67/IP54 | |||||
| Input Voltage | AC100~240V 50/60Hz | |||||
| Module Size(mm) | 250mm*250mm | |||||
| Cabinet Size (mm) | 500mm*500mm*89mm | |||||
| Maintenance | Back | |||||
| Working Environment | Temperature -20~50℃ | |||||
| Model No. | MA2.5 | MA2.6 | MA2.97 | MA3.91 | MA4.81 | MA5.2 |
| Pixel Pitch (mm) | 2.5mm | 2.6mm | 2.97mm | 3.91mm | 4.81mm | 5.2mm |
| Led Lamp | SMD1415 | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD1921 |
| Pixel Density (dot/ m²) | 160000 | 147456 | 112896 | 65536 | 43264 | 36864 |
| Cabinet Resolution | 200*200 | 192*192 | 168*168 | 128*128 | 104*104 | 96*96 |
| Weight (Kg/ Cabinet) | 12kg | 12kg | 12kg | 12kg | 12kg | 12kg |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
| Brightness (cd/ m²) | 800-1200nit | |||||
| Life span | ≥ 100,000Hours | |||||
| Greyscale | 14bit | |||||
| MAX Wattage (W/ m²) | 800W | |||||
| Working Wattage (W/ m²) | 300W | |||||
| IP Grade | IP67/IP54 | |||||
| Input Voltage | AC100~240V 50/60Hz | |||||
| Module Size(mm) | 250mm*250mm | |||||
| Cabinet Size (mm) | 500mm*500mm*89mm | |||||
| Maintenance | Back | |||||
| Working Environment | Temperature -20~50℃ | |||||
Scheda tecnica del prodotto
Floor LED Display Spec sheet
Click to download Specs sheet of Floor LED Display
FAQ of Floor LED Display
Floor-led display is the LED display that designed to be installed on the floor for people to walk on. It has interactive sensors version so that people can interact with the content on the LED display. Hence attracts more people.
It has sensor ICs built in within the led display, and we have customized led display control system to monitor the sensors. hence once the sensor is triggered, the sensor would send a signal back to the computer, and the computer can do the related calculation and then render a feedback effect to display on the LED screen. Then people is able to interact with the floor led display. Of course the interactive effect need to customize.
Dipende, se si tratta di un lavoro totalmente personalizzato in cui dobbiamo riprogettare le schede a led e gli utensili, allora potrebbero volerci circa 45-60 giorni, mentre se si tratta di progetti normali, allora ci vogliono circa 30 giorni. Se ordini solo un normale modulo a led che abbiamo in magazzino, allora ci vogliono solo 7 giorni.
Il nostro prodotto ha CE-LVD, CE-EMC e CE-Rohs, FCC, PSE. Utilizziamo i migliori fornitori di componenti elettrici, quindi è anche facile ottenere altri certificati come richiesto dal tuo paese.
Per la maggior parte dei nostri prodotti offriamo una garanzia standard di 2 anni con servizio post-vendita online illimitato.
