LED Display Tunnel

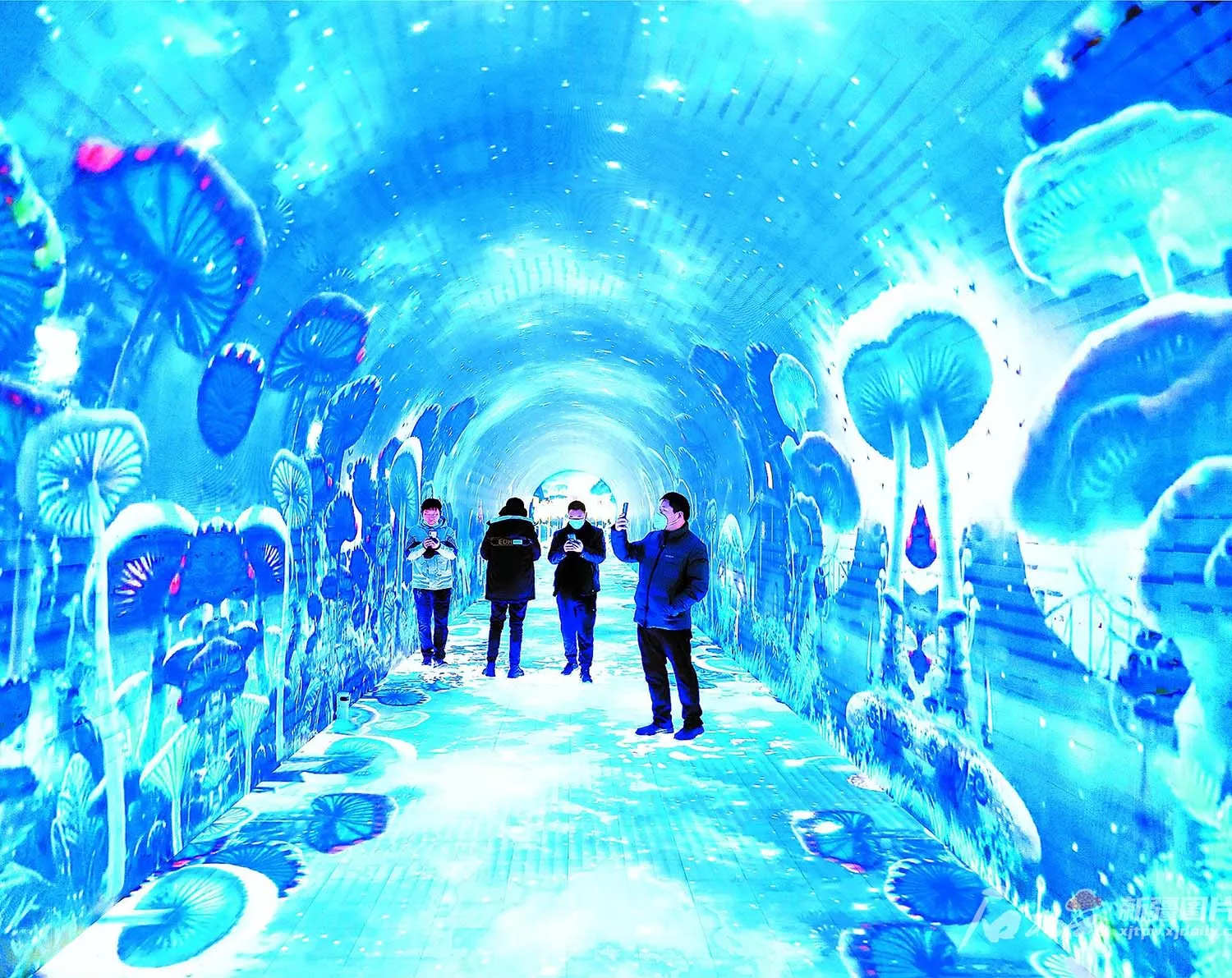

Tunnel LED Display can also be called tunnel LED screen. It is a popular application of soft flexible LED display. Tunnel LED Display offers a immersive visual effects, with all the walls are installed with led display, it offers a 360° unbeatable viewing experience.
The walking space and viewing angle of the tourists have been taken intro account when design the tunnel LED Display, Hence it would provide the best visual effect to the tourist in it.
The LED screen can not only play various exquisite patterns and animations, but also interact with tourists through special effects such as lights and sounds, allowing tourists to experience immersive and surreal fun.
Das Pixelabstandsangebot umfasst P1,25, P1,5, P1,8, P2,5, P3, P4, P5.
- Angebot einholen->
1: 360° Unbeatable Visual Effect
High refresh rate nad high greyscale LED modules, offer zero scan line, and refresh line on the camera’s footage, and vivid visual effects in our naked eye. Perfect for Museum, shopping mall, trade show, and site affection use.
2: Unterschiedliche Größe und Pixelabstand verfügbar
The Tunnel LED Screen is a high customized led display, We can offer different pixel pitch, shape, and size based on your requirements. Currently the popular pixel pitch are 1.25mm, 1.875mm, 2mm, 2.5mm and 3mm.
3:Easy Installation and Front Maintenance
The Tunnel LED Display frame is designed to be easily spliced, The led module is designed with magnets, very easy to do the maintenance and installation
4:Customize Tunnel LED Display
Our experienced engineer is able to design the Tunnel shape screen as your required, and offer different solutions to best meet your requirements
5: Seamless Splicing
High precision LED modules to be able to splice a seamless and gapless Tunnel LED display surface, which makes a good visual effects
6:Wide Viewing Angle and High Contrast Rate
Use wide viewing angle LED lamp offering over 140° Viewing angle, and a contrast rate over 5000:1, which offers a good visual effect at any direction
7:Wide Applications
Very popular application in Shopping mall, Museum, Tourist attractions, and Trade show etc.
Round LED Display Specifications
| Module No. | FL0.93 | FL1.25 | FL1.5 | FL1.6 | FL1.8 | FL2 | FL2.5 | FL3 | FL4 |
| Size: | 240*120mm | ○240*120mm ●320*160mm | ○240*120mm ●320*160mm | ○240*120mm ●320*160mm | ○240*120mm ●320*160mm | ○240*120mm ●320*160mm | ○240*120mm ●320*160mm | ○240*120mm ●320*160mm | ○240*120mm ●320*160mm |
| Pixel Pitch: | 0.9375mm | 1.25mm | ○1.579mm ●1.538mm | ○1.579mm ●1.538mm | ○1.875mm ●1.86mm | 2mm | 2.5mm | ○3mm ●3.076mm | 4mm |
| Weight(g): | ○170g ●270g | ○170g ●270g | ○170g ●270g | ○170g ●270g | ○170g ●270g | ○170g ●270g | ○170g ●270g | ○170g ●270g | ○170g ●270g |
| SMD Chip: | Mini 4 in 1 COB availiable | SMD1010 COB availiable | SMD1212 COB availiable | SMD1212 | SMD1515/ SMD1212 | SMD1515 | SMD1515 | SMD2121 | SMD2121 |
| Smallest Curve Diameter | 720mm in Diameter/90° Splicing | ||||||||
| Pixel density (dot/㎡) | 1137777 | 640000 | ○401111 ●422500 | ○401111 ●422500 | ○284444 ●288906 | 250000 | 160000 | ○111111 ●105625 | 62500 |
| Resolution: | 256×128 | ○192*96 ●256*128 | ○152*76 ●208*104 | ○152*76 ●208*105 | ○126*64 ●172×86 | ○120*60 ●160*80 | ○96*48 ●128*64 | ○80*40 ●104×52 | ○60*30 ●80*40 |
| Scan mode: | 1/64 | ○1/48 ●1/64 | ○1/38 ●1/52 | ○1/38 ●1/53 | ○1/32 ●1/43 | ○1/30 ●1/40 | ○1/24 ●1/32 | ○1/20 ●1/26 | ○1/15 ●1/20 |
| Bildwiederholrate | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Brightness(cd/㎡) | 500-600nit | 600-700nit | 700-900nit | 700-900cd | 700-900nit | 700-900nit | 700-900nit | 700-900nit | 700-900nit |
| Wattage (Max./Avg.) | 600W/200W | 600W/200W | 600W/200W | 600W/200W | 600W/200W | 600W/200W | 600W/200W | 600W/200W | 600W/200W |
| Viewing Angle(H/V) | 160°/140° | ||||||||
| CCT: | 1000-10000K Changeable | ||||||||
| Contrast Ratio: | 5000:1 | ||||||||
| Maintenance: | Front | ||||||||
Produktdatenblatt
Tunnel LED Display Spec sheet
Click to download Specs sheet of Tunnel Shape LED Display
FAQ of Tunnel LED Display
Tunnel led display is a popular creative led display application. It make the led display installed on the surface of tunnel ( the tunnel is normally the customized supporting structure). Hence when people pass through the tunnel, the tunnel can show different videos or images with 360° immersive visual effect.
Depending on the shapes of the tunnel led display, we can calculate the resolution of the total tunnel led screen, and then we can customize the displaying content base on the resolution.
Depending on the resolutions, we can use the appropriate video controllers. then use the playback software to display the displaying content
Es hängt davon ab, ob es sich um einen komplett individuellen Auftrag handelt, bei dem wir die LED-Platinen und Werkzeuge neu gestalten müssen. Dann kann es etwa 45–60 Tage dauern, während es bei normalen Projekten etwa 30 Tage dauert. Wenn Sie nur ein gewöhnliches LED-Modul bestellen, das wir auf Lager haben, dauert es nur 7 Tage.
Unser Produkt ist CE-LVD, CE-EMC und CE-Rohs, FCC, PSE zertifiziert. Wir arbeiten mit den besten Lieferanten für elektrische Komponenten zusammen, daher ist es auch problemlos möglich, andere Zertifikate nach Wunsch Ihres Landes zu erstellen.
Für die meisten unserer Produkte bieten wir standardmäßig eine 2-jährige Garantie mit unbegrenztem Online-Kundendienst.
